No. of Cavity: 1+1
Steel for cavity & core: 1.2343 ESR HRC48~50
Resin: Iupilon HL3503-N418
Shrinkage: 0.6%
Hotrunner Brand: HRS
Part Size: 460*340*100 MM
Tool Size: 715*700*759 MM
Tool Weight: 2542 Kg
Part surface finishing: SPI-A1(high polishing)

Part Name: 19-04-Gu &VI8 19-04-Portacartucho VI8&19-04-Tap VI7

No. of Cavity:1+1+1

Steel for cavity & core: 1.2344 HRC48~52

Resin: PC

Shrinkage: 0.8%

Part Size: Dia. 21*160 MM & Dia. 21*40MM

Tooling Size: 400*400*428 MM

Tool Weight: 522 Kg

Part surface finishing: VDI 3400 Ref. 30

Part Name: Light Block Ambient
No. of Cavity: （1+1）+（1+1）+（1+1）
Steel for cavity & core: 1.2343 HRC50~52
Resin: PMMA ALTUGLAS HT 121/TRANSPARENT
Hotrunner Brand: HRS
Part Size: 115.47X93.22X208.88 MM   57.33X69.77X186.39 MM   92.08X82.18X98.71MM
Tooling Size: 1350X890X950 MM
Tool Weight:  7122 Kg

Texture:  VDI21

Cavity No: 1* 8

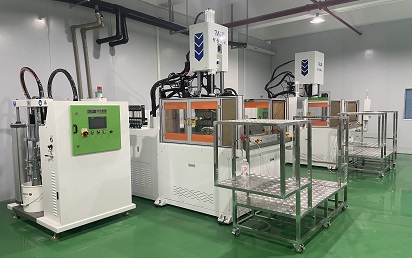

Raw material type: LSR

Hardness:  shore A 20-50

Injection gate system: Cold deck valve gate by Sequential control

Part Name: Venting Duct

No. of Cavity:8

Steel for cavity & core: S-7  HRC55-57

Resin: PPS+GF40（Ryton R-4-300 BL）

Part Weight: 60g

Tooling Size: 650x950x780MM

Tooling Weight:3780KG

Injection System:8 valve gates
